PVC Steel Wire Helix Duct

Application:

Especially ideal for ventilation, industrial vacuum cleaner, and granulate conveying systems.

As suction and transport hose suitable for below substance:

1.Gaseous medias such as vapors and smoke

2.Liquidmedias

3.Small granules such as dusts,powders and etc.

Working temperature range:

-20 °C to +70 °C (Short time to 80℃)

Features:

1.Highly flexible with low weight

2.Extremely compressible

3.Could be static electricity conductive by grounding the steel wire Smooth interior

4.Highly transparent wall

5.Small bending radius

6.Comply to RoHS

7.Wall thickness varieties are available

8.Different colors are available

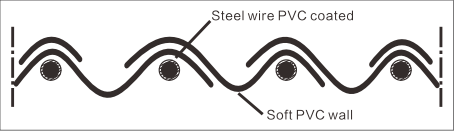

Material:

Wall: Soft PVC

Spiral: Steel wire PVC coated

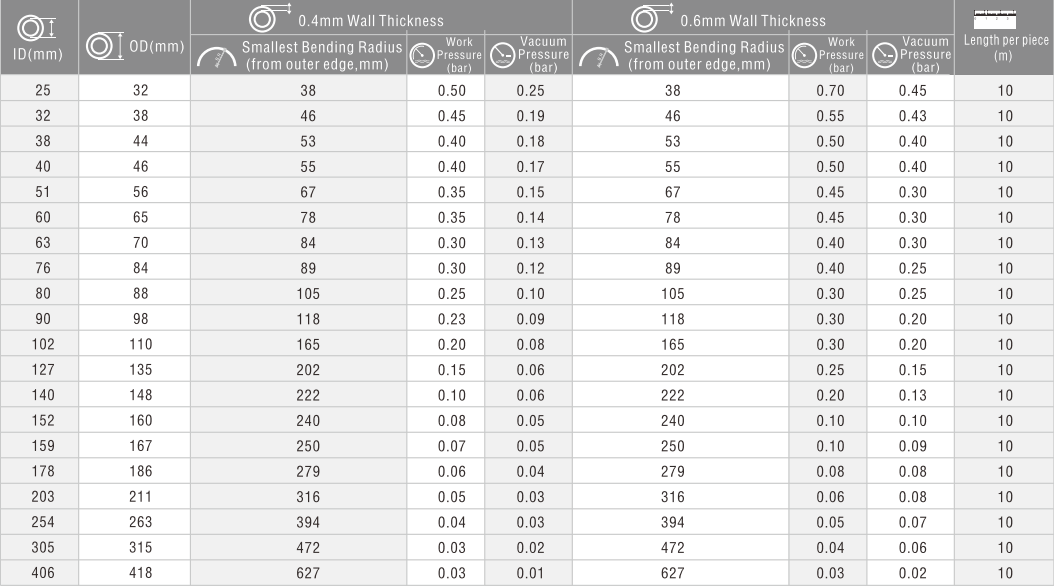

Technical Data
