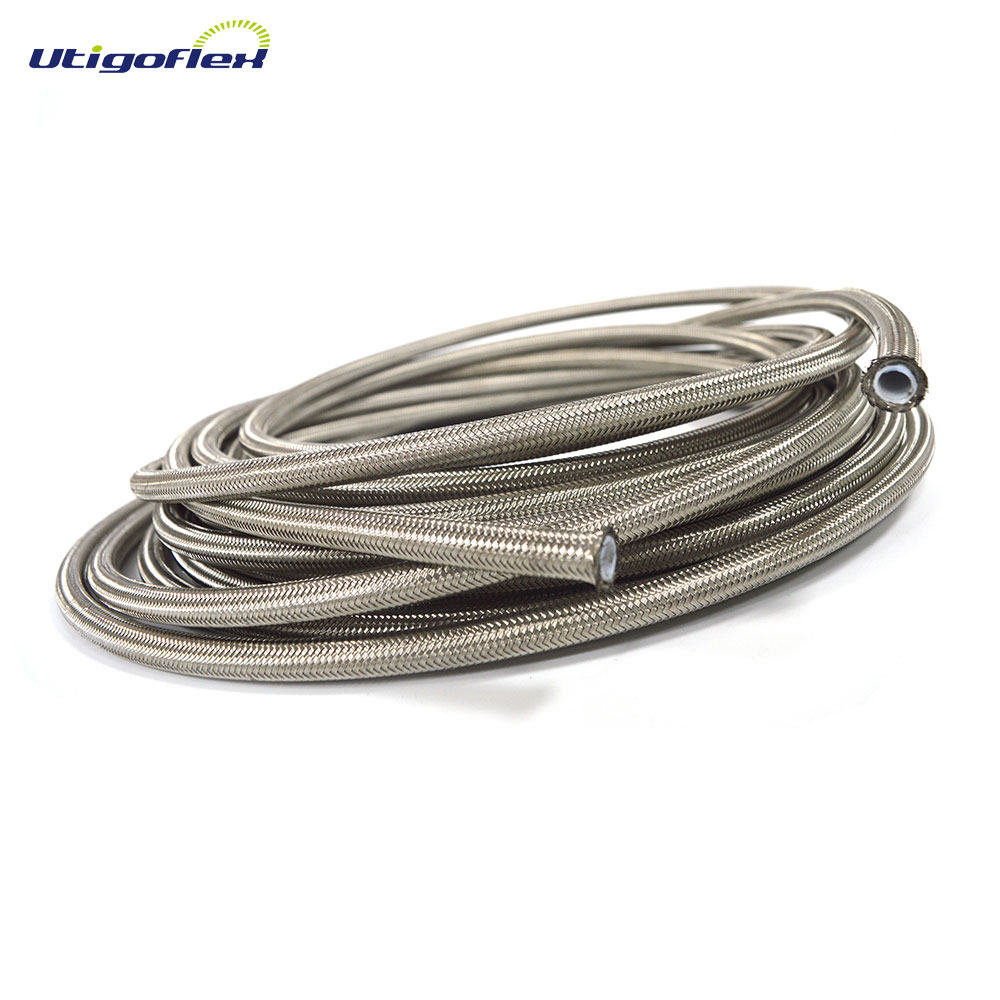

SAE 100 R14 Stainless Steel Wire Braided with PTFE Hose

SAE 100 R14 hydraulic hose is perfect for petroleum or water-based fluids, working in extreme temperatures from -54°C to +204°C. Type A features a PTFE tube with stainless steel reinforcement. Type B adds an electrically conductive inner layer to prevent static, ensuring safety and reliability.

Utigoflex devote to provide consumers with high-quality hose products and solution services，that any OEM or ODM production requirement can be satisfied.

Contact-us

Application:

This hose is suitable for delivering petroleum or water-based hydraulic fluids.
This kind of hose can be divided into two kinds according to the structure and material: type A and type B.

Material:

Type A: it is composed of tube and reinforcement.

The tube is made from PTFE and the reinforcement is made from one layer of 303 XX stainless steel

Type B: it is composed of inner surface, tube and reinforcement.

The tube is made from PTFE and the reinforcement is made from one layer of 303 XX stainless steel.

Working temperature range:

-54 °C to +204 °C

Features:

( Type A ) The tube is made from polytetrafluoroethylene ( PTFE ) and the reinforcement is made from one layer of 303 XX stainless steel.

( Type B ) lt is almost similar to type A in structure,but it has an inner surface which is electrically conductive.And the inner surface is used to prevent the electrostatic charge.
