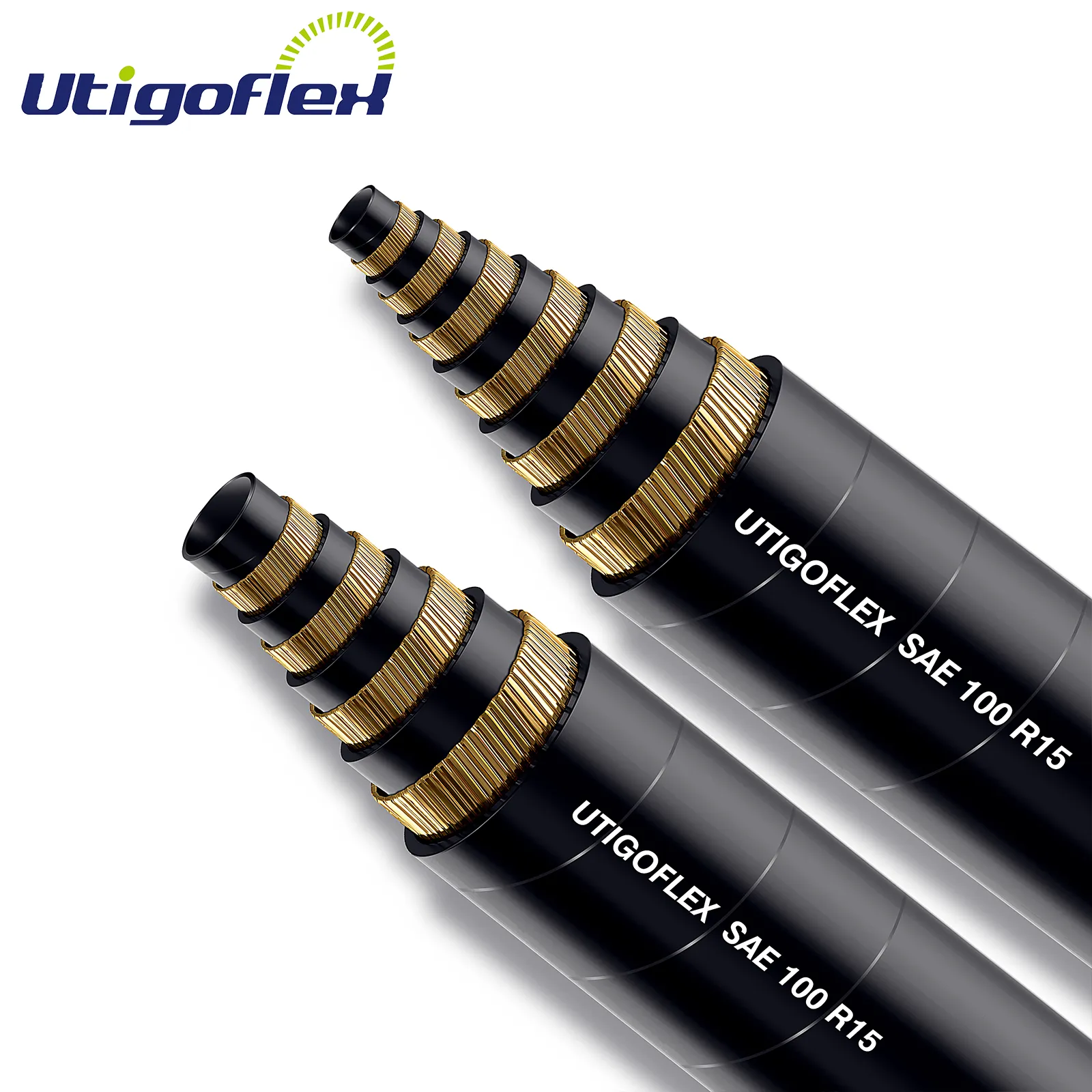

SAE 100 R15 Steel Wire Spiraled Hydraulic Hose

SAE 100 R15 hydraulic hose is perfect for high-pressure applications and petroleum-based hydraulic oils. Made with oil-resistant synthetic rubber, it offers excellent performance. The multiple layers of spiraled steel wire provide high pressure resistance. The durable cover resists abrasion, corrosion, and aging.

Utigoflex devote to provide consumers with high-quality hose products and solution services，that any OEM or ODM production requirement can be satisfied.

Contact-us

Application:

SAE 100 R15 hydraulic hose is very popular in high pressure working conditions and it is suitable for petroleum-based hydraulic oils.

Material:

Tube: High quality black oil resistant synthetic rubber.

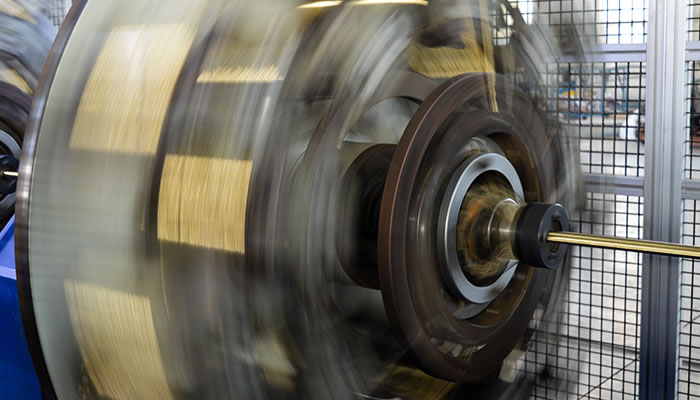

Reinforcement: Multiple layers of high tensile and high strength thick spiraled steel wire in alternating direction.

Cover: High quality abrasion, corrosion and weather resistant synthetic rubber.

Working temperature range:

-40 °C to +121 °C

Features:

The tube is made from black oil resistant synthetic rubber, making the hose widely used in delivering petroleum-based hydraulic oils.

The reinforcement is made from multiple layers of high tensile and high strength thick spiraled steel wire in alternating direction, making the hose have very high working pressure.

The cover is made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone, aging and cut.
